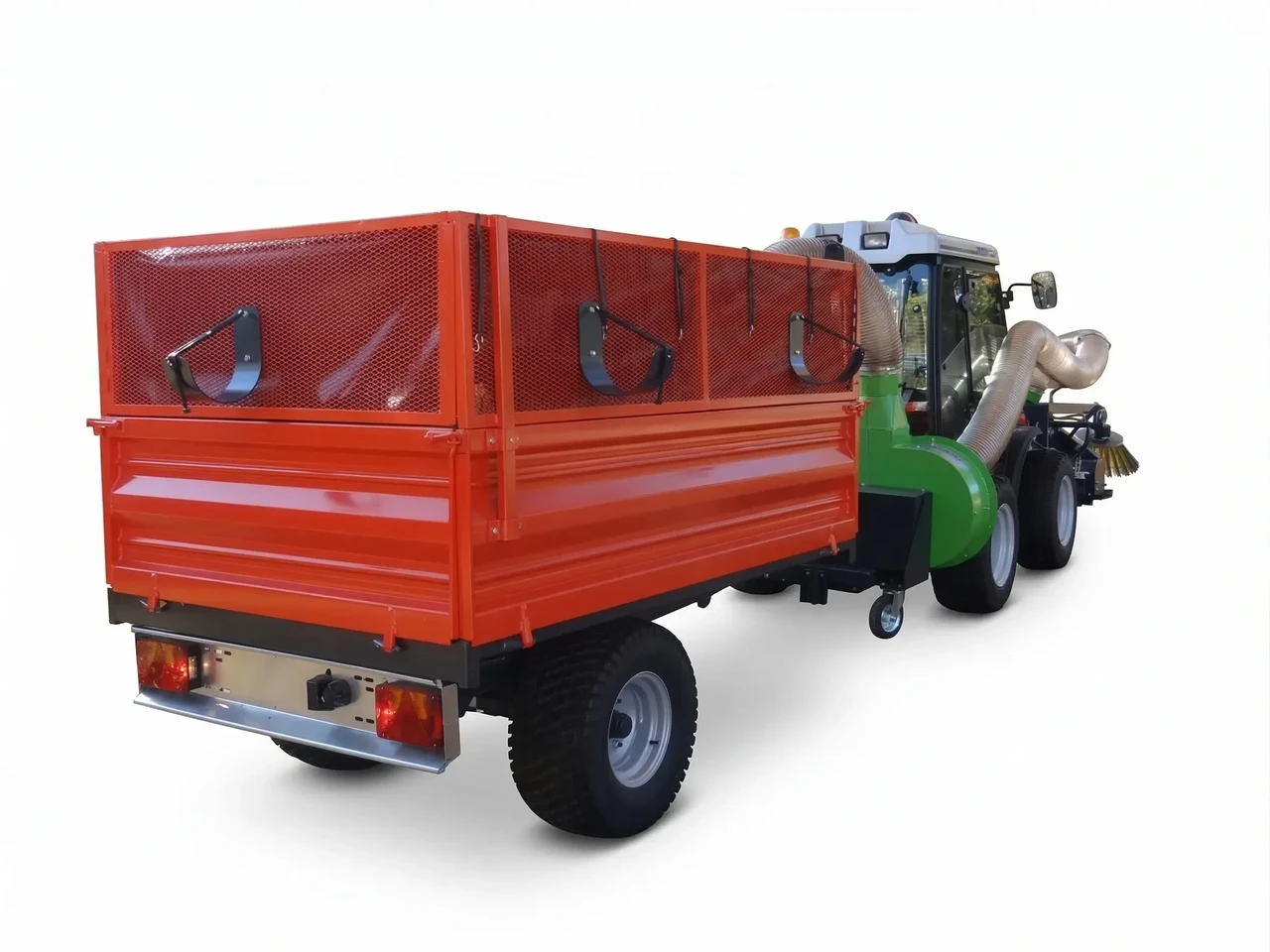

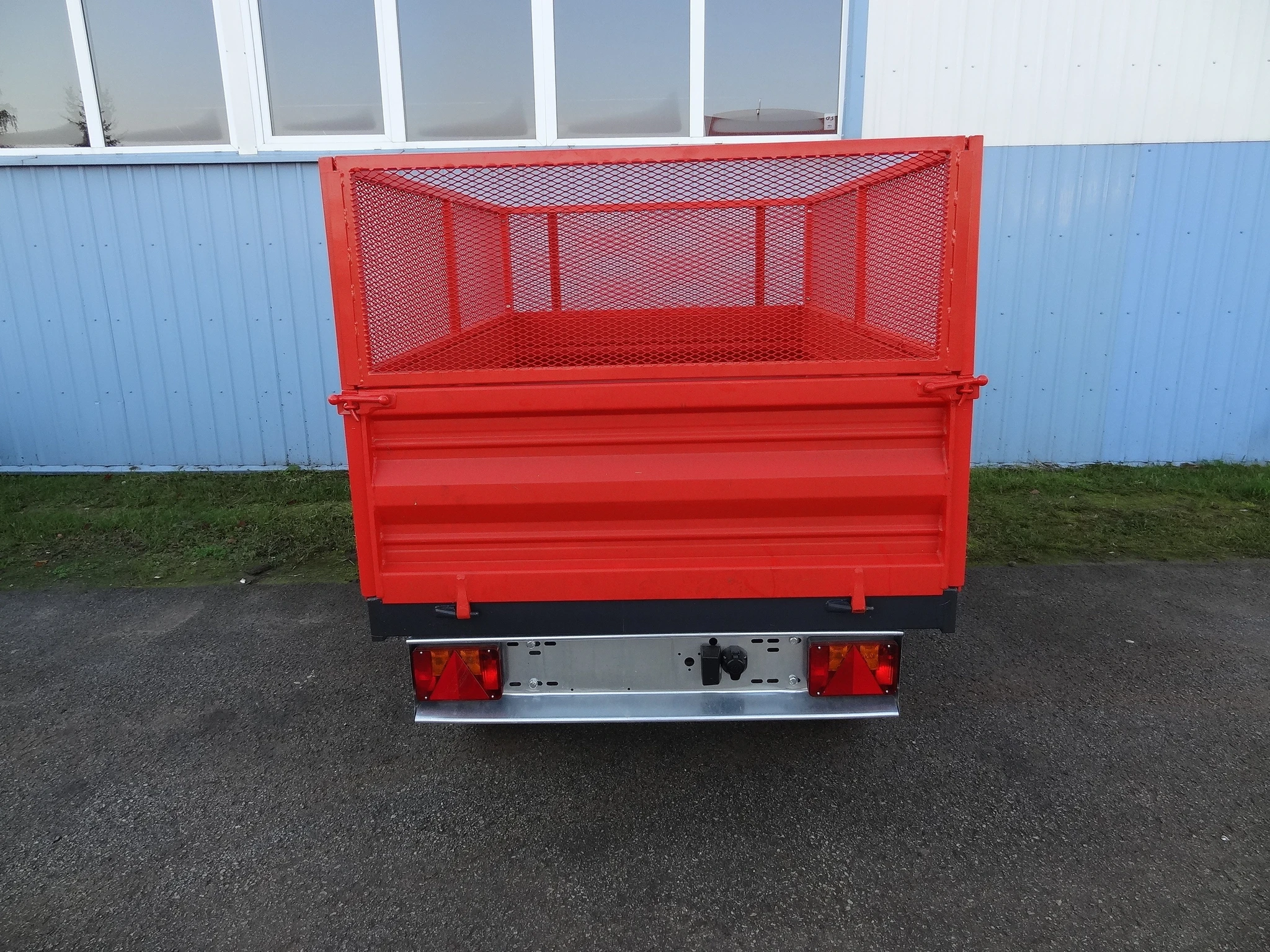

LEAF TRAILER P220

Technical data

Box internal dimensions
                               Length       2200 mm
                               Width         1400 mm
                               Height        1000 mm
Box capacity                               3.1 m3
Gross weight                           2000 kg
Loading capacity                    1540 kg
Loading height                          710 mm

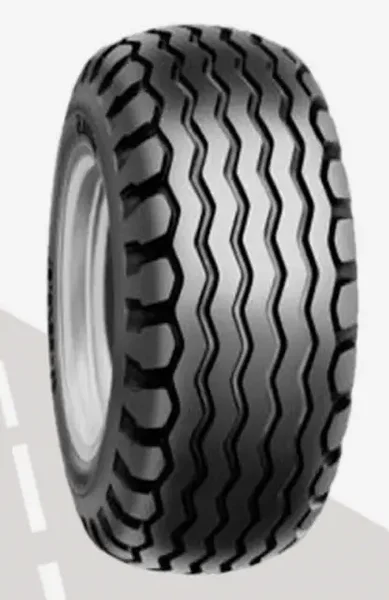

Wheels 26x12.00x12 oder 10.0/75-15.3
Tipping                                       Rear
Tipping drive: Hydraulic and hand pump.
Drive connection: D-50mm coupling head or other hitch eye.
Vertical hitch weight: 100-350kg.
The leaf trailer has EU type approval.
The trailer can be driven up to 40 km/h

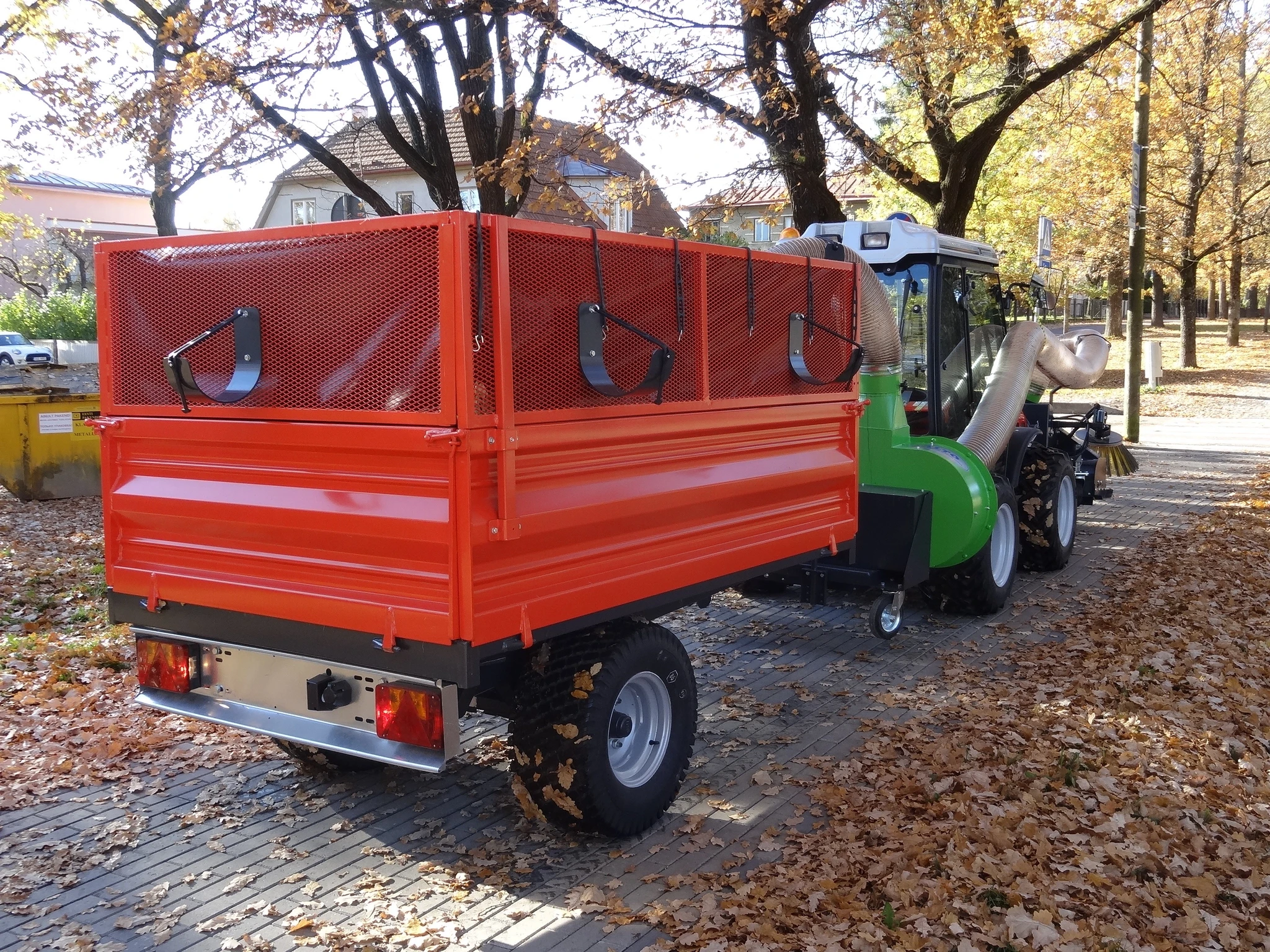

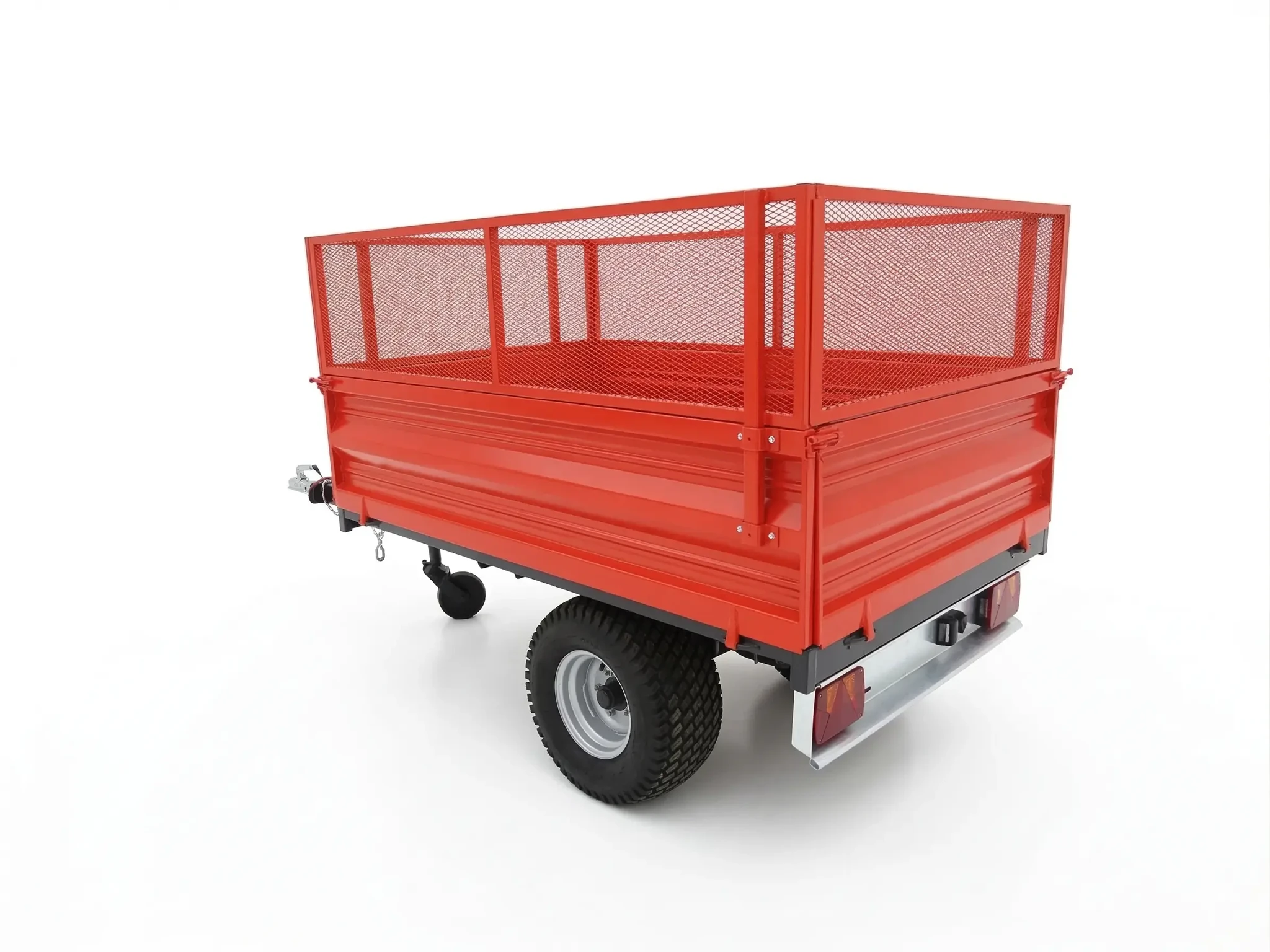

LEAF COLLECTION TRAILER P220

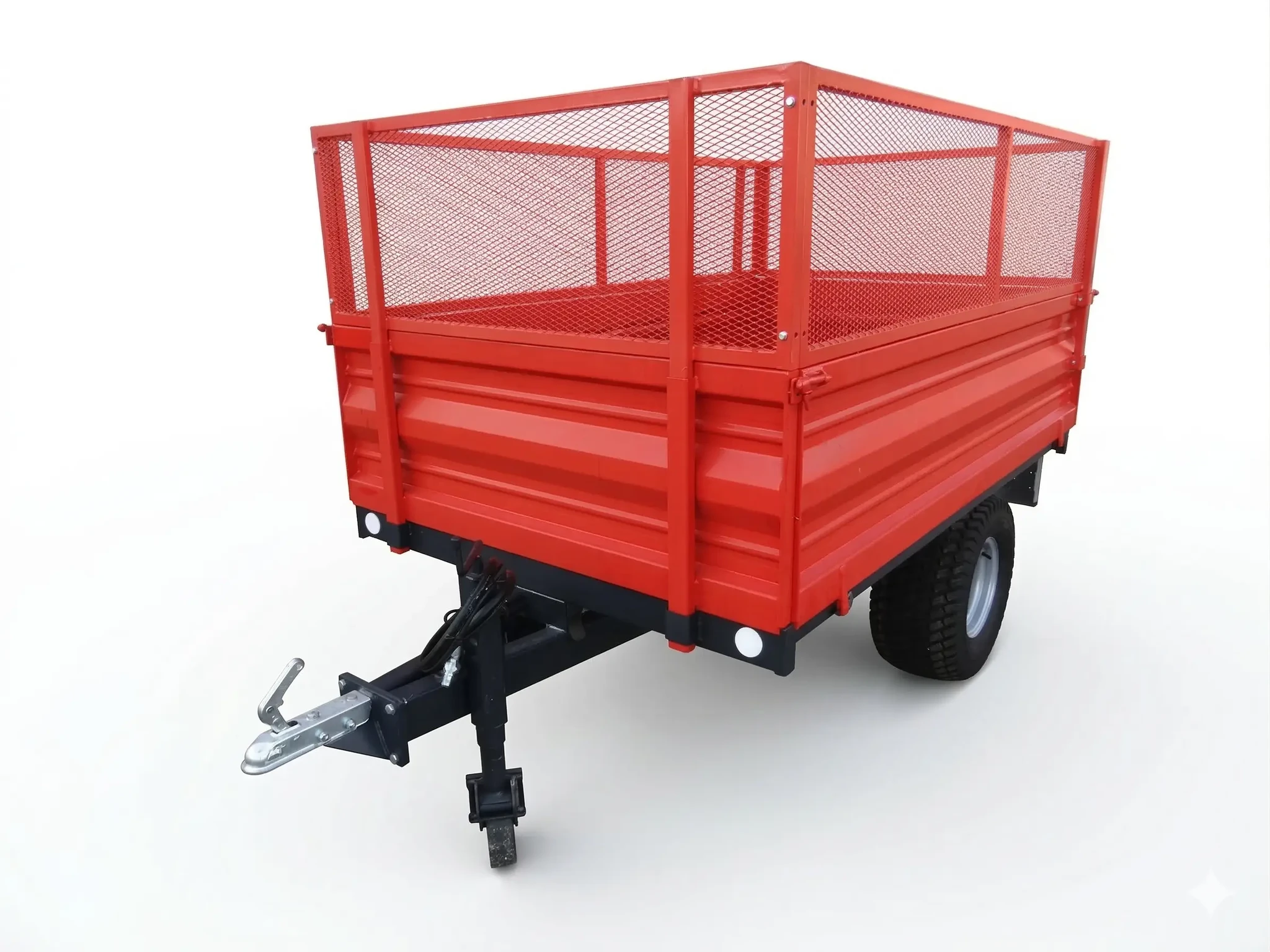

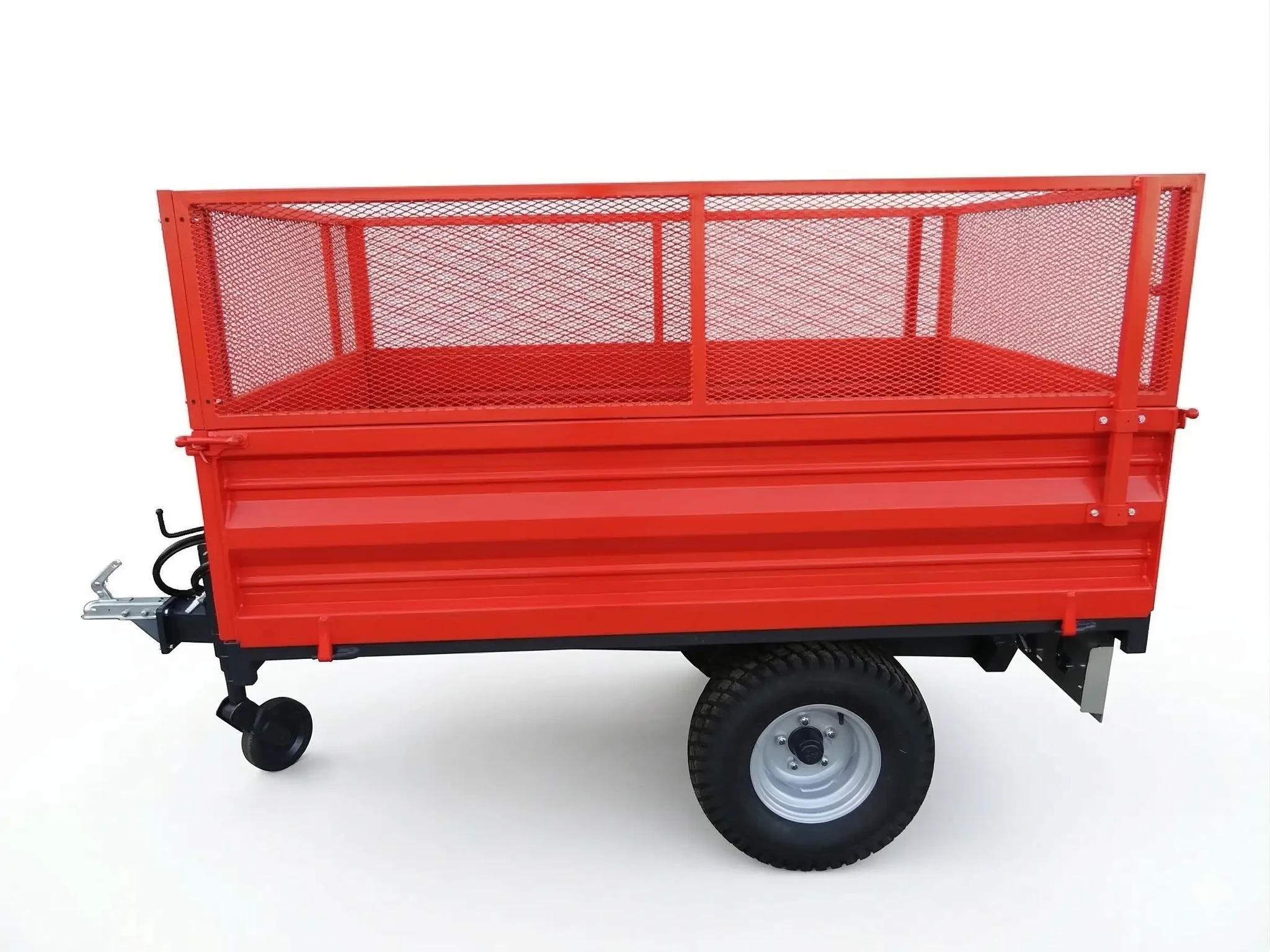

Technical description of the trailer:

1. Steel side panels 400 mm
2. Steel elevations 600 mm
3. Steel sheet base
4. Trailer axle without or with brakes

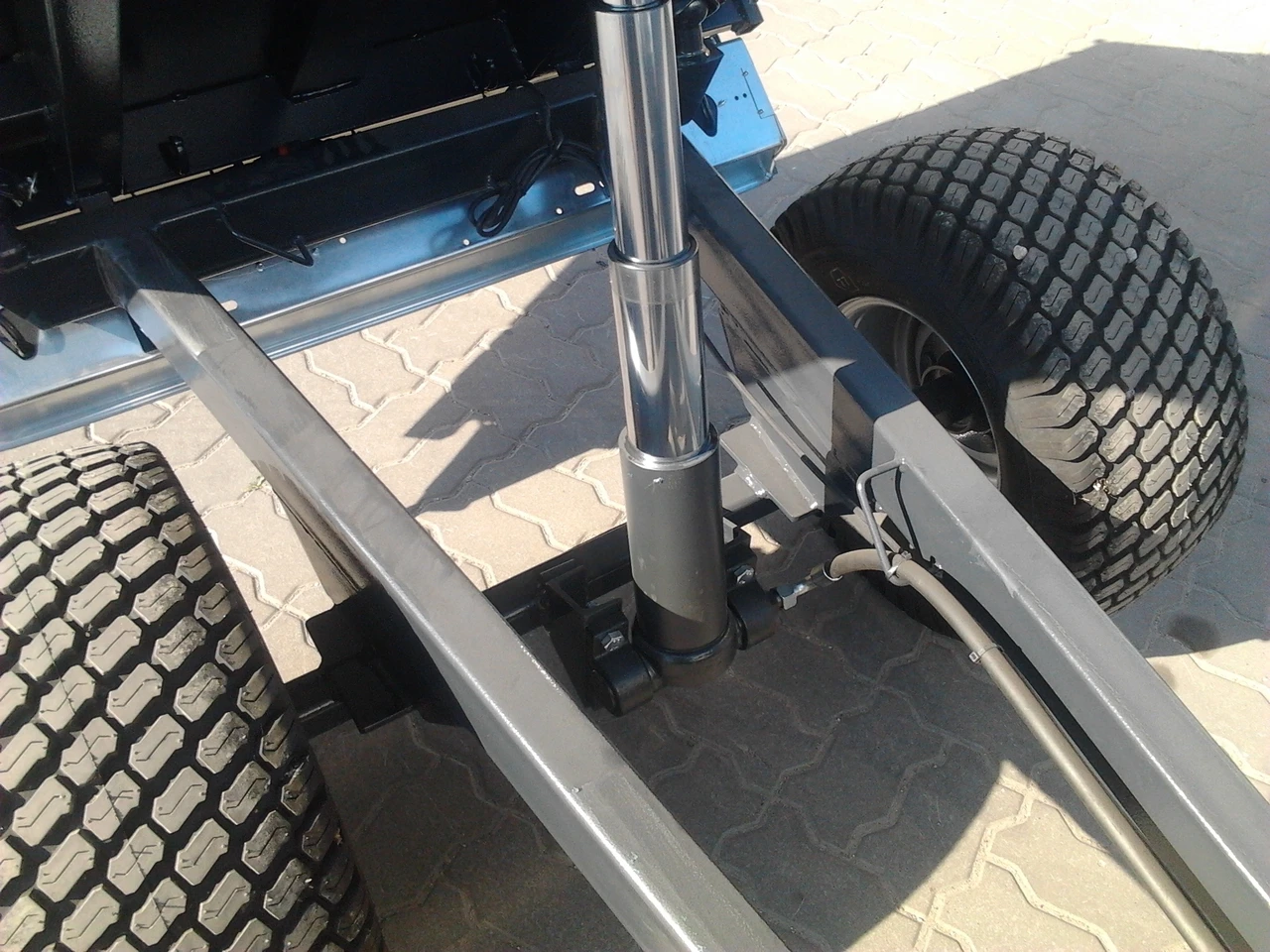

5. Tractor hydraulic lift
6. Manual hand pump
7. The length of the trailer drawbar is        according to the vacuum model.
8. Max. length of the drawbar 1300 mm

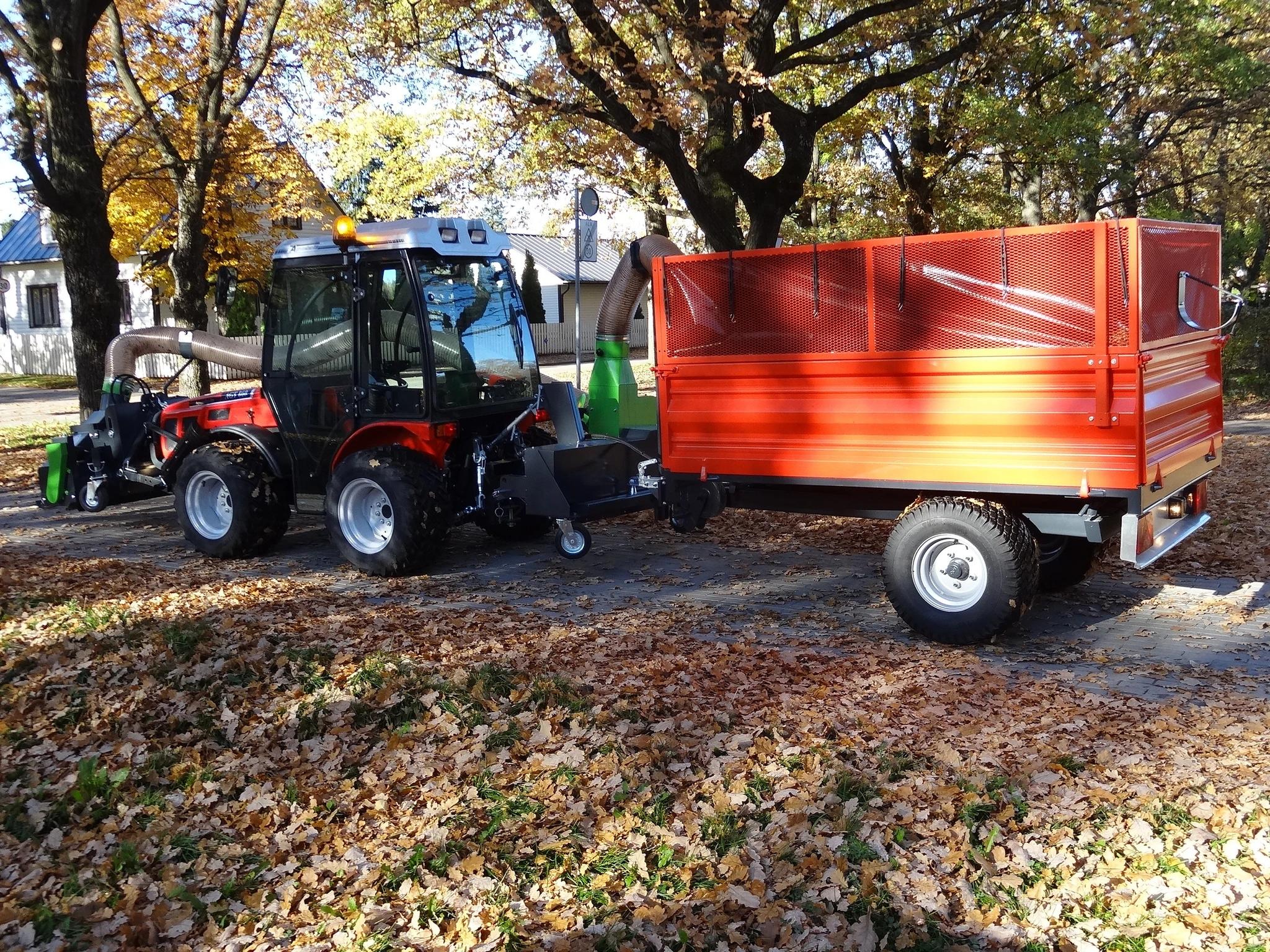

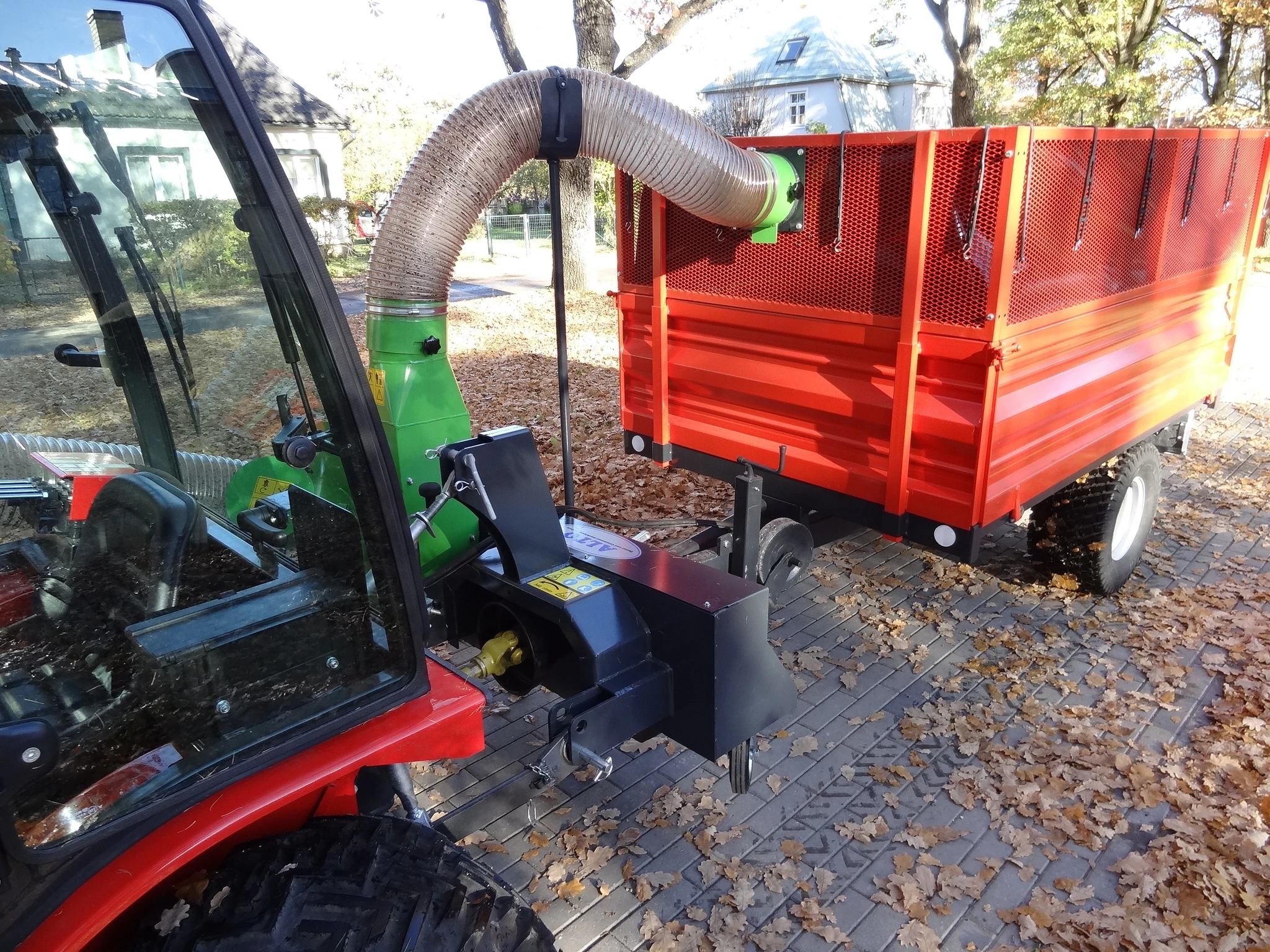

All of our leaf vacuum models can be in stalled on the trailer.
The leaf vacuums are attached to the base plate with four bolts.
The base plate is attached to the trailer drawbar with a bolt.
By removing the cover and elevations, the trailer can be used for other purposes.

The leaf vacuum may only be installed on the front of the trailer drawbar by our dealers with our permission. We have design protection that is valid in the EUROPEAN UNION.

You can find dealers on our website.
