Technical data
Box internal dimensions
Length 2560 mm
Width 1400 mm
Height 900 mm
Box capacity 3.2 m3
Gross weight 1500 kg
Loading capacity 1060 kg
Loading height 710 mm
Wheels 13"
Tipping Rear

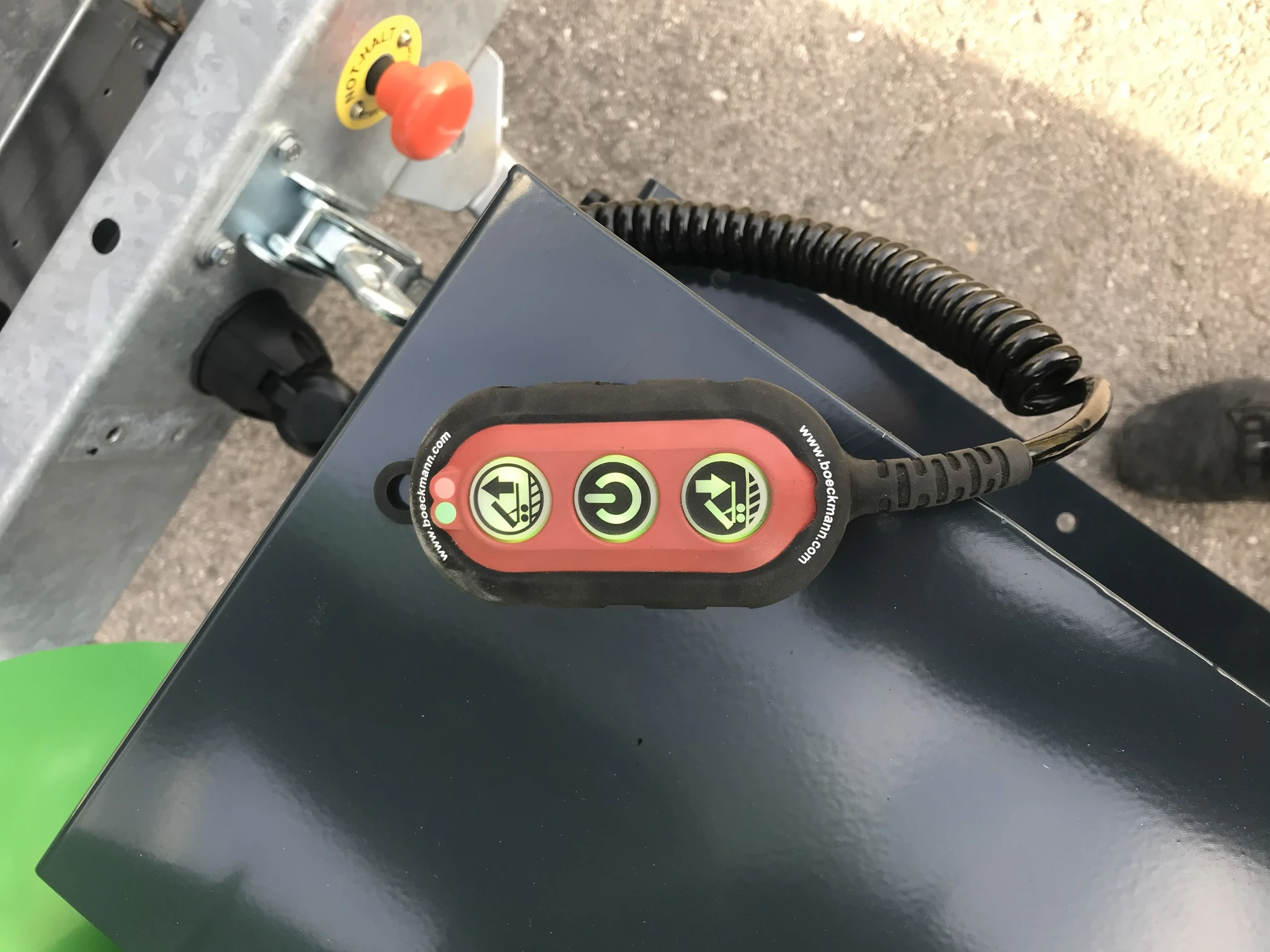

Tipping drive electric and hand pump.
Drive connection - D-50mm coupling head.
The leaf trailer has EU type approval.
The trailer can be driven up to 90 km/h
LEAF COLLECTION TRAILER BÖCKMANN 2514
Technical description of the trailer:
1. Aluminum side panels 300 mm
2. Steel elevations 600 mm
3. Steel sheet base
4. Removable corner posts
5. Trailer axle with brakes
6. Electric hydraulic pump with battery
7. Manual hand pump
Technical description of the trailer:
1. Aluminum side panels 300 mm
2. Steel elevations 600 mm
3. Steel sheet base
4. Removable corner posts
5. Trailer axle with brakes
6. Electric hydraulic pump with battery
7. Manual hand pump

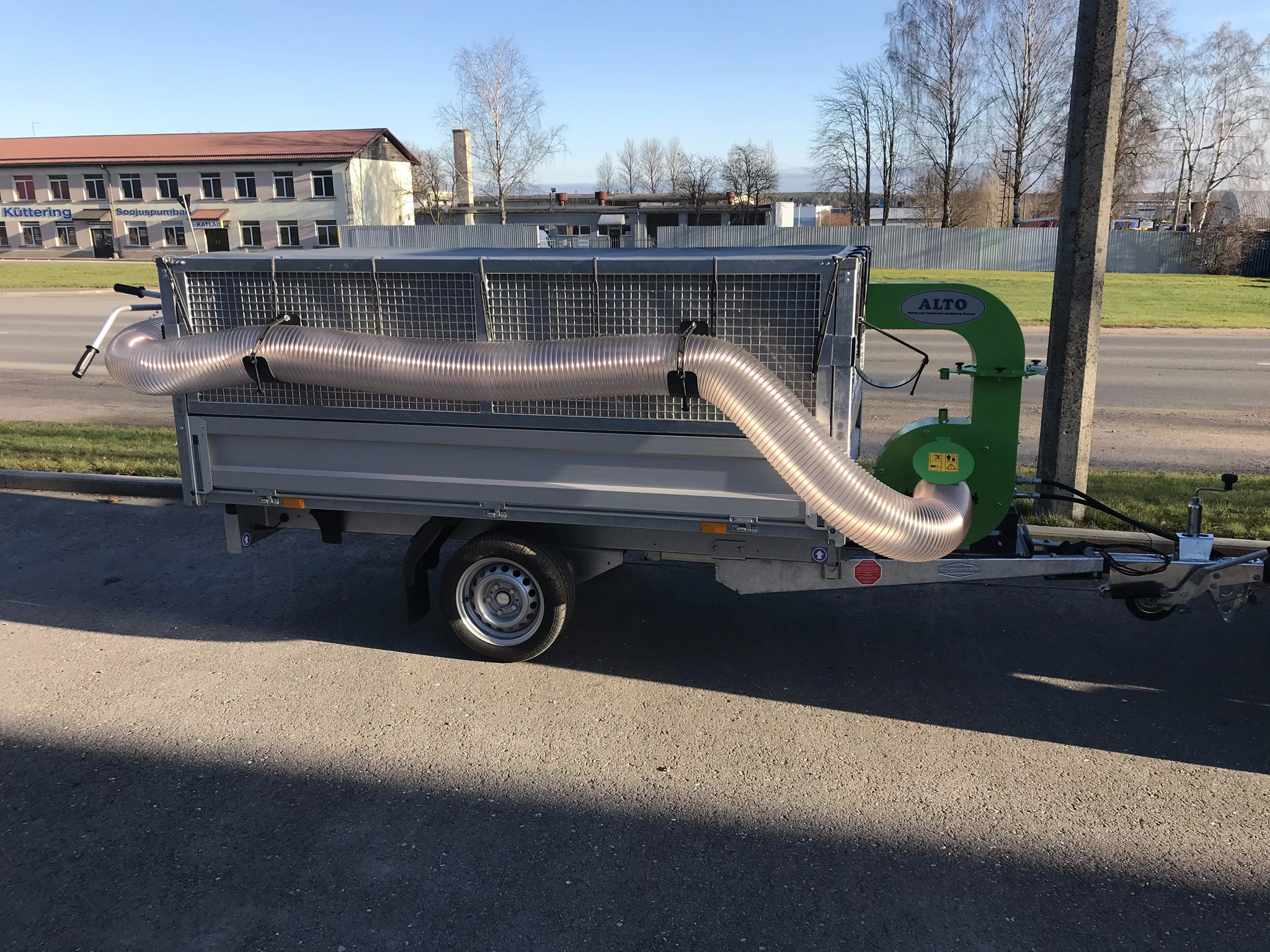

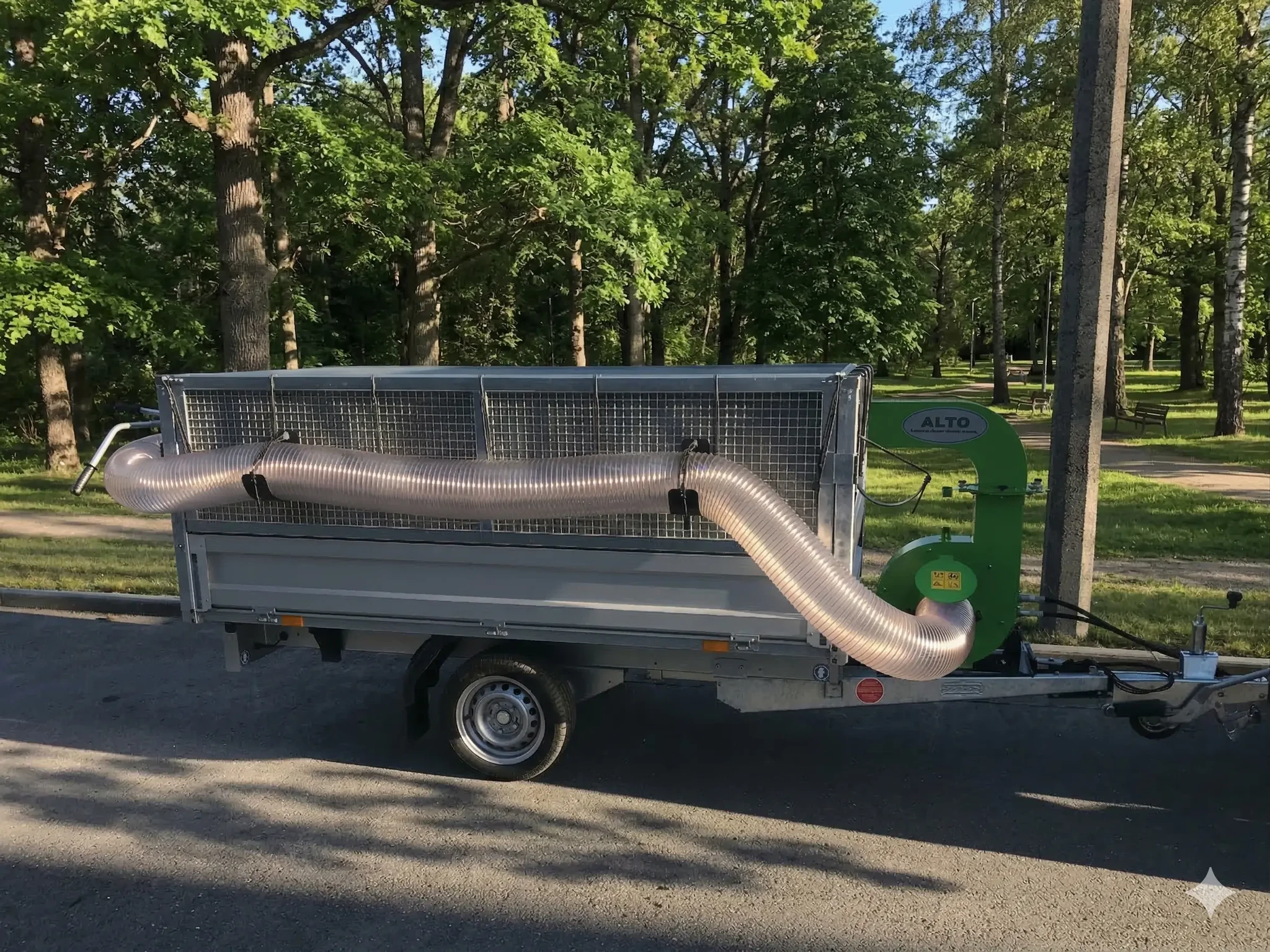

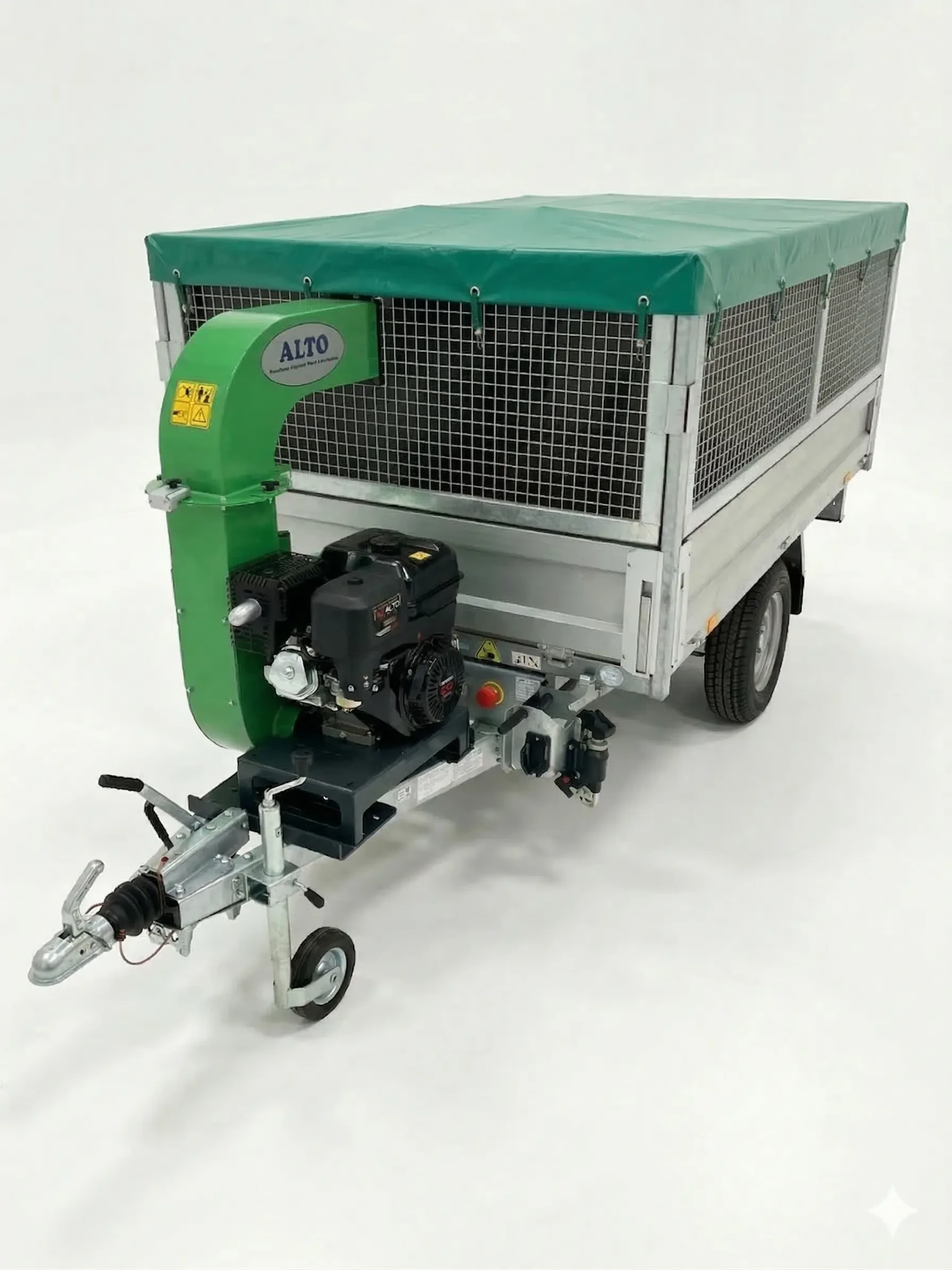

All of our leaf vacuum models can be in stalled on the trailer.
The leaf vacuums are attached to the base plate with four bolts.
The base plate is attached to the trailer drawbar with a bolt.
By removing the cover and elevations, the trailer can be used for other purposes.
The leaf vacuums are attached to the base plate with four bolts.
The base plate is attached to the trailer drawbar with a bolt.
By removing the cover and elevations, the trailer can be used for other purposes.
The leaf vacuum may only be installed on the front of the trailer drawbar by our dealers with our permission. We have design protection that is valid in the EUROPEAN UNION.
You can find dealers on our website.
